Our Neodymium Magnet Product Line
Precision-engineered industrial magnets manufactured to international quality standards.
Disc Magnets
Block Magnets
Ring Magnets
Arc & Segment Magnets
Countersunk Magnets
Rescue Magnet

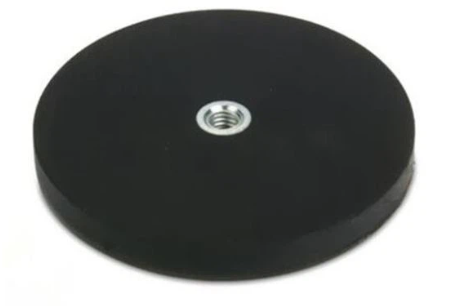

Female Rubber Magnet

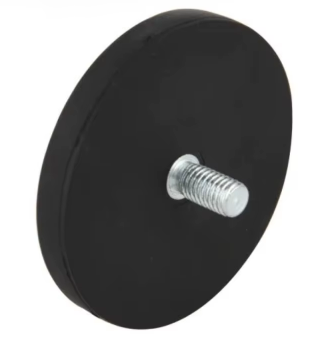

Male Rubber Magnet
Female Rubber Magnet (Short Type)
Standard Manufacturing Dimensions
| Shape | Technical Drawing | Standard Range | Maximum Capacity |
|---|---|---|---|
Disc |
Diameter: ≤100 mm
Thickness: 0.5–45 mm
|
Diameter: ≤150 mm
Thickness: 0.5–60 mm
|
|
Block |
Length: ≤150 mm
Width: ≤100 mm
Thickness: ≤55 mm
|
Length: ≤200 mm
Width: ≤150 mm
Thickness: ≤70 mm
|
|
Ring |
Outer Ø: ≤100 mm
Inner Ø: ≤90 mm
Thickness: 0.5–45 mm
|
Outer Ø: ≤150 mm
Inner Ø: ≤145 mm
Thickness: 0.5–60 mm
|
|
Arc / Segment |
Length: ≤150 mm
Width: ≤100 mm
Thickness: 2–30 mm
|
Length: ≤2000 mm
Width: ≤100 mm
Thickness: 1.5–50 mm
|
Physical Properties of Magnets at Ambient Temperature
Density
7.4 - 7.7 g/cm³
Hardness
600 - 620 HV
Bending Strength
250 - 450 MPa
Compressive Strength
1000 - 1200 MPa
Tensile Strength
⊥ C Axis 300 - 350 MPa
|| C Axis 200 - 220 MPa
Impact Strength
2 - 10 KJ/m²
Breaking Tenacity
5 MPa·m¹/²
Young's Modulus
150 - 160 GPa
Thermal Conductivity
5 - 6 W·m⁻¹·K⁻¹
Specific Heat
0.44 J·g⁻¹·K⁻¹
Electrical Resistance
1.25 Ω·mm²/m
Neodymium Disc Magnet List
×| Code | Product | Diameter x Thickness (mm) | Grade | Coating | Action |
|---|---|---|---|---|---|
| YUV1001 | Disc Neodymium Magnet | 10x1.8 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1002 | Disc Neodymium Magnet | 10x1.4 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1003 | Disc Neodymium Magnet | 10x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1004 | Disc Neodymium Magnet | 10x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1005 | Disc Neodymium Magnet | 10x15 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1006 | Disc Neodymium Magnet | 10x1 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1007 | Disc Neodymium Magnet | 10x20 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1008 | Disc Neodymium Magnet | 10x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1009 | Disc Neodymium Magnet | 10x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1010 | Disc Neodymium Magnet | 10x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1011 | Disc Neodymium Magnet | 12x1.8 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1012 | Disc Neodymium Magnet | 12x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1013 | Disc Neodymium Magnet | 12x1 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1014 | Disc Neodymium Magnet | 12x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1015 | Disc Neodymium Magnet | 12x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1016 | Disc Neodymium Magnet | 12x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1017 | Disc Neodymium Magnet | 12x6 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1018 | Disc Neodymium Magnet | 14x1.8 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1019 | Disc Neodymium Magnet | 14x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1020 | Disc Neodymium Magnet | 14x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1021 | Disc Neodymium Magnet | 15x1.8 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1022 | Disc Neodymium Magnet | 15x1.4 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1023 | Disc Neodymium Magnet | 15x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1024 | Disc Neodymium Magnet | 15x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1025 | Disc Neodymium Magnet | 15x15 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1026 | Disc Neodymium Magnet | 15x1 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1027 | Disc Neodymium Magnet | 15x2.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1028 | Disc Neodymium Magnet | 15x20 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1029 | Disc Neodymium Magnet | 15x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1030 | Disc Neodymium Magnet | 15x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1031 | Disc Neodymium Magnet | 15x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1032 | Disc Neodymium Magnet | 17x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1033 | Disc Neodymium Magnet | 17x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1034 | Disc Neodymium Magnet | 18x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1035 | Disc Neodymium Magnet | 18x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1036 | Disc Neodymium Magnet | 18x4 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1037 | Disc Neodymium Magnet | 2.5x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1038 | Disc Neodymium Magnet | 20x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1039 | Disc Neodymium Magnet | 20x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1040 | Disc Neodymium Magnet | 20x1 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1041 | Disc Neodymium Magnet | 20x2.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1042 | Disc Neodymium Magnet | 20x20 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1043 | Disc Neodymium Magnet | 20x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1044 | Disc Neodymium Magnet | 20x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1045 | Disc Neodymium Magnet | 20x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1046 | Disc Neodymium Magnet | 20x6 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1047 | Disc Neodymium Magnet | 22x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1048 | Disc Neodymium Magnet | 22x15 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1049 | Disc Neodymium Magnet | 22x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1050 | Disc Neodymium Magnet | 22x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1051 | Disc Neodymium Magnet | 25x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1052 | Disc Neodymium Magnet | 25x2.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1053 | Disc Neodymium Magnet | 25x25 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1054 | Disc Neodymium Magnet | 25x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1055 | Disc Neodymium Magnet | 25x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1056 | Disc Neodymium Magnet | 2x2.4 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1057 | Disc Neodymium Magnet | 2x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1058 | Disc Neodymium Magnet | 2x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1059 | Disc Neodymium Magnet | 2x4 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1060 | Disc Neodymium Magnet | 30x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1061 | Disc Neodymium Magnet | 30x30 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1062 | Disc Neodymium Magnet | 30x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1063 | Disc Neodymium Magnet | 35x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1064 | Disc Neodymium Magnet | 35x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1065 | Disc Neodymium Magnet | 36x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1066 | Disc Neodymium Magnet | 3x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1067 | Disc Neodymium Magnet | 3x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1068 | Disc Neodymium Magnet | 3x6 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1069 | Disc Neodymium Magnet | 40x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1070 | Disc Neodymium Magnet | 4x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1071 | Disc Neodymium Magnet | 4x1 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1072 | Disc Neodymium Magnet | 4x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1073 | Disc Neodymium Magnet | 4x4 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1074 | Disc Neodymium Magnet | 4x6 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1075 | Disc Neodymium Magnet | 50x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1076 | Disc Neodymium Magnet | 5x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1077 | Disc Neodymium Magnet | 5x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1078 | Disc Neodymium Magnet | 5x15 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1079 | Disc Neodymium Magnet | 5x1 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1080 | Disc Neodymium Magnet | 5x25 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1081 | Disc Neodymium Magnet | 5x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1082 | Disc Neodymium Magnet | 5x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1083 | Disc Neodymium Magnet | 5x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1084 | Disc Neodymium Magnet | 5x8 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1085 | Disc Neodymium Magnet | 6x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1086 | Disc Neodymium Magnet | 6x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1087 | Disc Neodymium Magnet | 6x1 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1088 | Disc Neodymium Magnet | 6x2.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1089 | Disc Neodymium Magnet | 6x25 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1090 | Disc Neodymium Magnet | 6x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1091 | Disc Neodymium Magnet | 6x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1092 | Disc Neodymium Magnet | 6x6 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1093 | Disc Neodymium Magnet | 7x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1094 | Disc Neodymium Magnet | 7x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1095 | Disc Neodymium Magnet | 8x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1096 | Disc Neodymium Magnet | 8x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1097 | Disc Neodymium Magnet | 8x16 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1098 | Disc Neodymium Magnet | 8x1 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1099 | Disc Neodymium Magnet | 8x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1100 | Disc Neodymium Magnet | 8x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1101 | Disc Neodymium Magnet | 8x4 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1102 | Disc Neodymium Magnet | 8x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1103 | Disc Neodymium Magnet | 8x8 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1104 | Disc Neodymium Magnet | 9x1.4 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1105 | Disc Neodymium Magnet | 9x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1106 | Disc Neodymium Magnet | 9x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1107 | Disc Neodymium Magnet | 50x30 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1108 | Disc Neodymium Magnet | 50x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| YUV1109 | Disc Neodymium Magnet | 5x1 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
If the size or grade you're looking for isn't in our catalog, please contact us.
Neodymium Block Magnet List
×| Code | Product | Length x Width x Thickness (mm) | Grade | Coating | Action |
|---|---|---|---|---|---|
| BLOK1001 | Block Neodymium Magnet | 10x10x1 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1002 | Block Neodymium Magnet | 10x10x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1003 | Block Neodymium Magnet | 10x10x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1004 | Block Neodymium Magnet | 10x4x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1005 | Block Neodymium Magnet | 10x5x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1006 | Block Neodymium Magnet | 10x5x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1007 | Block Neodymium Magnet | 15x10x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1008 | Block Neodymium Magnet | 15x10x1 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1009 | Block Neodymium Magnet | 15x10x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1010 | Block Neodymium Magnet | 15x10x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1011 | Block Neodymium Magnet | 15x15x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1012 | Block Neodymium Magnet | 15x15x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1013 | Block Neodymium Magnet | 15x5x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1014 | Block Neodymium Magnet | 15x8x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1015 | Block Neodymium Magnet | 16x8x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1016 | Block Neodymium Magnet | 16x8x4 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1017 | Block Neodymium Magnet | 20x10x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1018 | Block Neodymium Magnet | 20x10x1 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1019 | Block Neodymium Magnet | 20x10x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1020 | Block Neodymium Magnet | 20x10x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1021 | Block Neodymium Magnet | 20x10x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1022 | Block Neodymium Magnet | 20x15x4 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1023 | Block Neodymium Magnet | 20x15x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1024 | Block Neodymium Magnet | 20x20x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1025 | Block Neodymium Magnet | 20x20x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1026 | Block Neodymium Magnet | 20x20x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1027 | Block Neodymium Magnet | 20x6x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1028 | Block Neodymium Magnet | 20x6x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1029 | Block Neodymium Magnet | 20x8x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1030 | Block Neodymium Magnet | 20x8x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1031 | Block Neodymium Magnet | 20x8x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1032 | Block Neodymium Magnet | 20x8x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1033 | Block Neodymium Magnet | 25x10x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1034 | Block Neodymium Magnet | 25x10x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1035 | Block Neodymium Magnet | 25x8x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1036 | Block Neodymium Magnet | 3.5x3.5x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1037 | Block Neodymium Magnet | 3.5x3.5x2.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1038 | Block Neodymium Magnet | 30x10x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1039 | Block Neodymium Magnet | 30x10x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1040 | Block Neodymium Magnet | 30x10x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1041 | Block Neodymium Magnet | 30x10x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1042 | Block Neodymium Magnet | 30x20x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1043 | Block Neodymium Magnet | 30x20x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1044 | Block Neodymium Magnet | 30x30x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1045 | Block Neodymium Magnet | 30x30x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1046 | Block Neodymium Magnet | 40x10x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1047 | Block Neodymium Magnet | 40x10x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1048 | Block Neodymium Magnet | 40x10x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1049 | Block Neodymium Magnet | 40x13x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1050 | Block Neodymium Magnet | 40x15x15 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1051 | Block Neodymium Magnet | 40x15x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1052 | Block Neodymium Magnet | 40x15x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1053 | Block Neodymium Magnet | 40x20x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1054 | Block Neodymium Magnet | 40x20x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1055 | Block Neodymium Magnet | 40x25x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1056 | Block Neodymium Magnet | 40x25x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1057 | Block Neodymium Magnet | 40x40x20 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1058 | Block Neodymium Magnet | 50x10x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1059 | Block Neodymium Magnet | 50x10x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1060 | Block Neodymium Magnet | 50x10x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1061 | Block Neodymium Magnet | 50x20x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1062 | Block Neodymium Magnet | 50x20x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1063 | Block Neodymium Magnet | 50x40x20 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1064 | Block Neodymium Magnet | 50x50x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1065 | Block Neodymium Magnet | 5x5x1.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1066 | Block Neodymium Magnet | 5x5x2.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1067 | Block Neodymium Magnet | 50x50x25 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| BLOK1068 | Block Neodymium Magnet | 80x40x20 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
If the size or grade you're looking for isn't in our catalog, please contact us.
Neodymium Ring Magnet List
×| Code | Product | Outer Ø x Inner Ø x Thickness (mm) | Grade | Coating | Action |
|---|---|---|---|---|---|
| HAL1001 | Ring Neodymium Magnet | 13x10x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1002 | Ring Neodymium Magnet | 15x10x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1003 | Ring Neodymium Magnet | 15x10x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1004 | Ring Neodymium Magnet | 15x5.5x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1005 | Ring Neodymium Magnet | 15x5x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1006 | Ring Neodymium Magnet | 18x5x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1007 | Ring Neodymium Magnet | 18x5x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1008 | Ring Neodymium Magnet | 20x10x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1009 | Ring Neodymium Magnet | 20x16x2.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1010 | Ring Neodymium Magnet | 20x8x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1011 | Ring Neodymium Magnet | 22x5x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1012 | Ring Neodymium Magnet | 22x6x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1013 | Ring Neodymium Magnet | 23x19x2.5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1014 | Ring Neodymium Magnet | 25x5.5x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1015 | Ring Neodymium Magnet | 30x10x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1016 | Ring Neodymium Magnet | 30x10x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1017 | Ring Neodymium Magnet | 30x9x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1018 | Ring Neodymium Magnet | 40x20x8 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1019 | Ring Neodymium Magnet | 8x4x4 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1020 | Ring Neodymium Magnet | 10x4x2 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1021 | Ring Neodymium Magnet | 10x5x10 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1022 | Ring Neodymium Magnet | 10x5x3 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
| HAL1023 | Ring Neodymium Magnet | 10x5x5 | N35-52 / HRE FREE / Dy&Tb | Nickel, Epoxy, Gold | Get a Quote |
If the size or grade you're looking for isn't in our catalog, please contact us.
Countersunk Neodymium Magnet List
×| Code | Product | Diameter x Hole Ø x Thickness (mm) | Grade | Coating | Action |
|---|---|---|---|---|---|
| HVS1001 | Countersunk Neodymium Magnet | 12x5/3x3 | N28-N35 | Nickel | Get a Quote |
| HVS1002 | Countersunk Neodymium Magnet | 12x8/4x5 | N28-N35 | Nickel | Get a Quote |
| HVS1003 | Countersunk Neodymium Magnet | 15x10/5.5x5 | N28-N35 | Nickel | Get a Quote |
| HVS1004 | Countersunk Neodymium Magnet | 15x8/4x3 | N28-N35 | Nickel | Get a Quote |
| HVS1005 | Countersunk Neodymium Magnet | 15x8/4x5 | N28-N35 | Nickel | Get a Quote |
| HVS1006 | Countersunk Neodymium Magnet | 16x7/4x4 | N28-N35 | Nickel | Get a Quote |
| HVS1007 | Countersunk Neodymium Magnet | 7x10/5.5x5 | N28-N35 | Nickel | Get a Quote |
| HVS1008 | Countersunk Neodymium Magnet | 20x10/5.5x5 | N28-N35 | Nickel | Get a Quote |
| HVS1009 | Countersunk Neodymium Magnet | 20x10/5.5x5 | N28-N35 | Nickel | Get a Quote |
| HVS1010 | Countersunk Neodymium Magnet | 25x10/5.5x5 | N28-N35 | Nickel | Get a Quote |
| HVS1011 | Countersunk Neodymium Magnet | 30x10/5.5x6 | N28-N35 | Nickel | Get a Quote |
| HVS1012 | Countersunk Neodymium Magnet | 30x10/5.5x5 | N28-N35 | Nickel | Get a Quote |
| HVS1013 | Countersunk Neodymium Magnet | 40x10/5.5x5 | N28-N35 | Nickel | Get a Quote |
| HVS1014 | Countersunk Neodymium Magnet | 40x10/5.5x5 | N28-N35 | Nickel | Get a Quote |
| HVS1015 | Countersunk Neodymium Magnet | 22x10/5.5x10 | N28-N35 | Nickel | Get a Quote |
| HVS1016 | Countersunk Neodymium Magnet | 10x8/4x5 | N28-N35 | Nickel | Get a Quote |
If the size or grade you're looking for isn't in our catalog, please contact us.
Rescue Magnet — Technical Dimension Tables
×| Model | D (mm) | d (mm) | d1 (mm) | H (mm) | h (mm) | M | Weight (g) | Pull Force | Action |
|---|---|---|---|---|---|---|---|---|---|
| A20 | 20 | 10.7 | 19 | 29.5 | 7 | M4 | 27 | 11kg/25lb | Get a Quote |
| A25 | 25 | 13.5 | 23 | 33 | 8 | M5 | 44 | 22kg/50lb | Get a Quote |
| A32 | 32 | 13.5 | 23 | 33.1 | 8 | M5 | 59 | 32kg/70lb | Get a Quote |
| A36 | 36 | 17.00 | 26.8 | 38.5 | 8 | M6 | 71 | 43kg/95lb | Get a Quote |
| A42 | 42 | 17.00 | 26.8 | 39.7 | 8.6 | M6 | 98 | 65kg/145lb | Get a Quote |
| A48 | 48 | 20.3 | 35.5 | 50 | 11 | M8 | 197 | 75kg/165lb | Get a Quote |
| A55 | 55 | 20.3 | 35.5 | 51 | 12 | M8 | 278 | 95kg/200lb | Get a Quote |
| A60 | 60 | 20.3 | 35.5 | 54 | 15 | M8 | 330 | 160kg/350lb | Get a Quote |
| A70 | 70 | 25.5 | 43.8 | 65 | 17 | M10 | 608 | 200kg/450lb | Get a Quote |
| A75 | 75 | 25.5 | 43.8 | 66 | 18 | M10 | 632 | 250kg/550lb | Get a Quote |
| A80 | 80 | 25.5 | 43.8 | 66 | 18 | M10 | 821 | 280kg/600lb | Get a Quote |
| A90 | 90 | 25.5 | 43.8 | 66 | 18 | M10 | 899 | 360kg/800lb | Get a Quote |
| A120 | 120 | 29 | 49.1 | 72 | 18 | M12 | 1510 | 480kg/1000lb | Get a Quote |
| Model | D (mm) | h (mm) | H (mm) | d (mm) | d1 (mm) | M | Weight (g) | Pull Force | Action |
|---|---|---|---|---|---|---|---|---|---|
| B48 | 48 | 10 | 48 | 20.3 | 35.5 | M8 | 164 | 70kg/155lb | Get a Quote |
| B60 | 60 | 12 | 50 | 20.3 | 35.5 | M8 | 269 | 140kg/300lb | Get a Quote |
| B67 | 67 | 12 | 60 | 25.5 | 43.8 | M10 | 368 | 170kg/375lb | Get a Quote |
| B75 | 75 | 15 | 62 | 25.5 | 43.8 | M10 | 537 | 250kg/550lb | Get a Quote |
| B94 | 94 | 18 | 67 | 25.5 | 43.8 | M10 | 968 | 300kg/660lb | Get a Quote |
| B116 | 116 | 20 | 70 | 29 | 49.1 | M12 | 1626 | 400kg/880lb | Get a Quote |
| B136 | 136 | 23 | 75 | 29 | 49.1 | M12 | 2502 | 600kg/1350lb | Get a Quote |
| B160 | 160 | 32 | 110 | 40 | 70 | M20 | 5214 | 1000kg/2200lb | Get a Quote |
| B200 | 200 | 37 | 135 | 50 | 88 | M24 | 8889 | 1500kg/3300lb | Get a Quote |
| B250 | 250 | 40 | 157 | 60 | 105 | M30 | 16871 | 2000kg/4400lb | Get a Quote |
| B320 | 320 | 50 | 198 | 70 | 120 | M36 | 32633 | 3000kg/6600lb | Get a Quote |
| Model | D (mm) | h (mm) | H (mm) | d (mm) | d1 (mm) | M | Weight (g) | Pull Force | Action |
|---|---|---|---|---|---|---|---|---|---|
| C48 | 48 | 10 | 53 | 20.3 | 35.5 | M8 | 172 | 70kg/155lb | Get a Quote |
| C60 | 60 | 12 | 55 | 20.3 | 35.5 | M8 | 246 | 140kg/300lb | Get a Quote |
| C67 | 67 | 12 | 69 | 25.5 | 43.8 | M10 | 376 | 170kg/375lb | Get a Quote |
| C75 | 75 | 15 | 69 | 25.5 | 43.8 | M10 | 442 | 250kg/550lb | Get a Quote |
| C94 | 94 | 18 | 69 | 25.5 | 43.8 | M10 | 997 | 300kg/660lb | Get a Quote |
| C116 | 116 | 20 | 78 | 29 | 49.1 | M12 | 1517 | 400kg/880lb | Get a Quote |
| C136 | 136 | 23 | 78 | 29 | 49.1 | M12 | 2915 | 600kg/1350lb | Get a Quote |
| C160 | 160 | 32 | 118 | 40 | 70 | M20 | 5394 | 1000kg/2200lb | Get a Quote |
| C200 | 200 | 37 | 144 | 50 | 88 | M24 | 8867 | 1500kg/3300lb | Get a Quote |
| C250 | 250 | 40 | 169 | 60 | 105 | M30 | 16481 | 2000kg/4400lb | Get a Quote |
| C320 | 320 | 50 | 219 | 70 | 120 | M36 | 32460 | 3000kg/6600lb | Get a Quote |
In Series D, the M column refers to two mounting holes (M1 / M2).
| Model | D (mm) | h (mm) | H (mm) | L (mm) | d (mm) | d1 (mm) | M1 / M2 | Weight (g) | Pull Force | Action |
|---|---|---|---|---|---|---|---|---|---|---|
| D48 | 48 | 18 | 58 | 83 | 35.5 | 35.5 | M8 | 311 | 70kg/155lb | Get a Quote |
| D60 | 60 | 22 | 66 | 95 | 35.5 | 35.5 | M8 | 532 | 140kg/300lb | Get a Quote |
| D67 | 67 | 25 | 75 | 102 | 43.8 | 43.8 | M10 | 842 | 170kg/375lb | Get a Quote |
| D75 | 75 | 25 | 77 | 110 | 43.8 | 43.8 | M10 | 967 | 250kg/550lb | Get a Quote |
| D94 | 94 | 28 | 85 | 129 | 43.8 | 43.8 | M10 | 1600 | 300kg/660lb | Get a Quote |
| D116 | 116 | 32 | 92 | 160 | 29 | 49.1 | M12 | 2745 | 400kg/880lb | Get a Quote |
| D136 | 136 | 34 | 92 | 190 | 29 | 49.1 | M12 | 3932 | 600kg/1350lb | Get a Quote |
| Model | D (mm) | H (mm) | L (mm) | d (mm) | d1 (mm) | M | Weight (g) | Pull Force | Action |
|---|---|---|---|---|---|---|---|---|---|
| E48 | 48 | 18 | 86 | 20 | 36 | M8 | 276 | 80kg/175lb | Get a Quote |
| E60 | 60 | 22 | 98 | 20 | 36 | M8 | 498 | 140kg/300lb | Get a Quote |
| E67 | 67 | 25 | 111 | 26 | 44 | M10 | 733 | 170kg/375lb | Get a Quote |
| E75 | 75 | 25 | 119 | 26 | 44 | M10 | 902 | 250kg/550lb | Get a Quote |
| E94 | 94 | 28 | 138 | 26 | 44 | M10 | 1540 | 300kg/660lb | Get a Quote |
| E116 | 116 | 32 | 167 | 29 | 49 | M12 | 2656 | 400kg/880lb | Get a Quote |
| E136 | 136 | 34 | 187 | 29 | 49 | M12 | 3847 | 600kg/1350lb | Get a Quote |
If the size or pull force you're looking for isn't in our catalog, please contact us.
Female Rubber Magnet List
×| Code | Product | Diameter x M x Thickness (mm) | Grade | Coating | Action |
|---|---|---|---|---|---|
| CKAUD1001 | Female Rubber Magnet | 22xM4x6 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| CKAUD1002 | Female Rubber Magnet | 22xM5x6 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| CKAUD1003 | Female Rubber Magnet | 22xM6x6 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| CKAUD1004 | Female Rubber Magnet | 31xM4x6 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| CKAUD1005 | Female Rubber Magnet | 31xM5x6 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| CKAUD1006 | Female Rubber Magnet | 31xM6x6 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| CKAUD1007 | Female Rubber Magnet | 36xM4x7 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| CKAUD1008 | Female Rubber Magnet | 36xM5x7 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| CKAUD1009 | Female Rubber Magnet | 36xM6x7 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| CKAUD1010 | Female Rubber Magnet | 43xM4x6 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| CKAUD1011 | Female Rubber Magnet | 43xM5x6 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| CKAUD1012 | Female Rubber Magnet | 43xM6x6 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| CKAUD1013 | Female Rubber Magnet | 66xM5x8 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| CKAUD1014 | Female Rubber Magnet | 66xM6x8 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| CKAUD1015 | Female Rubber Magnet | 66xM8x8 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| CKAUD1016 | Female Rubber Magnet | 88xM6x10 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| CKAUD1017 | Female Rubber Magnet | 88xM8x10 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| CKAUD1018 | Female Rubber Magnet | 88xM10x10 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
If the size or grade you're looking for isn't in our catalog, please contact us.
Male Rubber Magnet List
×| Code | Product | Diameter x M x Thickness (mm) | Grade | Coating | Action |
|---|---|---|---|---|---|
| BKAUE1001 | Male Rubber Magnet | 22xM4x13 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| BKAUE1002 | Male Rubber Magnet | 22xM5x13 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| BKAUE1003 | Male Rubber Magnet | 22xM6x13 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| BKAUE1004 | Male Rubber Magnet | 31xM4x21 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| BKAUE1005 | Male Rubber Magnet | 31xM5x21 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| BKAUE1006 | Male Rubber Magnet | 31xM6x21 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| BKAUE1007 | Male Rubber Magnet | 36xM4x22 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| BKAUE1008 | Male Rubber Magnet | 36xM5x22 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| BKAUE1009 | Male Rubber Magnet | 36xM6x22 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| BKAUE1010 | Male Rubber Magnet | 43xM4x21 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| BKAUE1011 | Male Rubber Magnet | 43xM5x21 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| BKAUE1012 | Male Rubber Magnet | 43xM6x21 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| BKAUE1013 | Male Rubber Magnet | 7xM5x23 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| BKAUE1014 | Male Rubber Magnet | 7xM6x23 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| BKAUE1015 | Male Rubber Magnet | 7xM8x23 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| BKAUE1016 | Male Rubber Magnet | 88xM5x23 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| BKAUE1017 | Male Rubber Magnet | 88xM6x23 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| BKAUE1018 | Male Rubber Magnet | 88xM8x23 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
If the size or grade you're looking for isn't in our catalog, please contact us.
Female Rubber Magnet (Short Type) List
×| Code | Product | Diameter x M x Thickness (mm) | Grade | Coating | Action |
|---|---|---|---|---|---|
| AKAUD1001 | Female Rubber Magnet | 22xM4x11.5 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| AKAUD1002 | Female Rubber Magnet | 22xM5x11.5 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| AKAUD1003 | Female Rubber Magnet | 22xM6x11.5 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| AKAUD1004 | Female Rubber Magnet | 31xM4x11.5 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| AKAUD1005 | Female Rubber Magnet | 31xM5x11.5 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| AKAUD1006 | Female Rubber Magnet | 31xM6x11.5 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| AKAUD1007 | Female Rubber Magnet | 36xM4x11.5 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| AKAUD1008 | Female Rubber Magnet | 36xM5x11.5 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| AKAUD1009 | Female Rubber Magnet | 36xM6x11.5 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| AKAUD1010 | Female Rubber Magnet | 43xM4x10.5 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| AKAUD1011 | Female Rubber Magnet | 43xM5x10.5 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| AKAUD1012 | Female Rubber Magnet | 43xM6x10.5 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| AKAUD1013 | Female Rubber Magnet | 66xM5x13.5 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| AKAUD1014 | Female Rubber Magnet | 66xM6x13.5 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| AKAUD1015 | Female Rubber Magnet | 66xM8x13.5 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| AKAUD1016 | Female Rubber Magnet | 88xM6x13.5 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| AKAUD1017 | Female Rubber Magnet | 88xM8x13.5 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
| AKAUD1018 | Female Rubber Magnet | 88xM10x13.5 | N35-52 / HRE FREE / Dy&Tb | Rubber | Get a Quote |
If the size or grade you're looking for isn't in our catalog, please contact us.
Arc & Segment Magnets
×Manufactured to custom sizes. Please contact us with detailed drawings to get a quote.
